Detection object:
Circuit board solder joint inspection
Testing requirements:
- Check for missing solder
- Whether the solder joints overlap
- Detection of pin alignment
Solution: DTCM125-48-AL (DTCM series double telecentric lens) + white shadowless ring light +1/2.5″ 5M camera

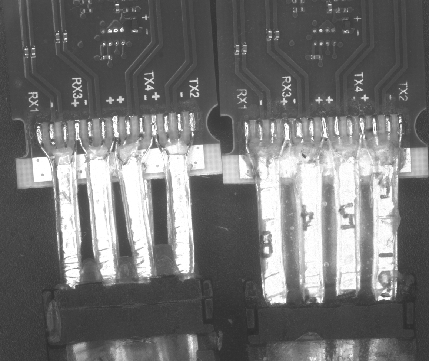

MEASURED RENDERINGS
